Lever operated test stand for hardness testing with base plate made out of glass

• For Shore hardness testing of plastics, leather etc.

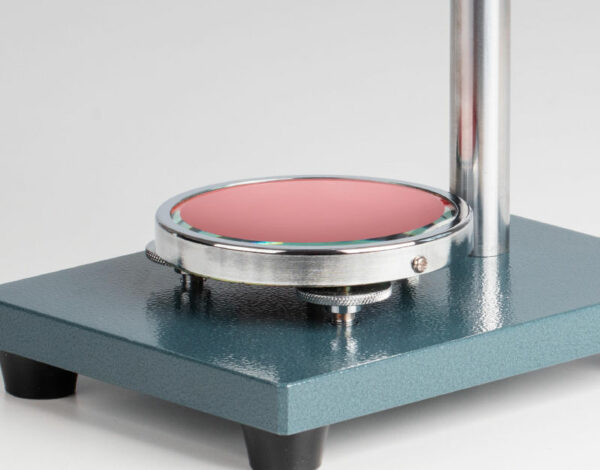

• 1 Glass plate: Providing a higher base hardness and superior accuracy
• 2, 2 Mechanical construction: Robust design for precise measuring
• 3,3 Level adjustment: For the precise levelling of the base plate blate
• 4 SAUTER test bench TI-DL, with interchangeable, longer guide column for digital hardness testers HD
• Hardness tester not included
• Operation:
  • 1. The SAUTER hardness testing device HB is fitted in a suspended position
  • 2. The test object is placed on the round testing table right under the durometer pin
  • 3. By lowering the handle lever, the measurement instrument is pressed in a controlled manner into the test object
• The accuracy of the displayed result is approx. 25 % higher than in a manual operated test

Suitable for: HBD

Column height mm: 245

Adjusting weight kg: 5

Net weight approx kg: 8,5

Detailed specification: td-TI-D_en
