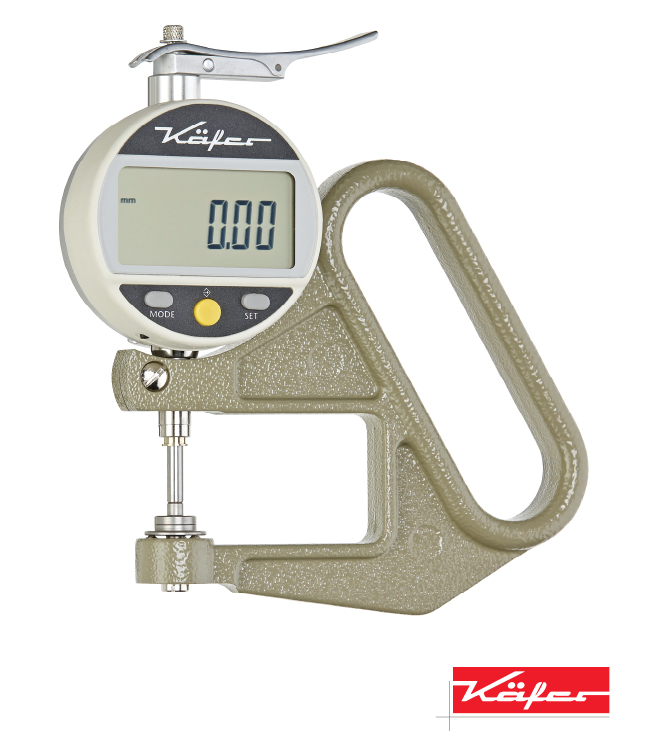

Thickness Dial Gauges | digital

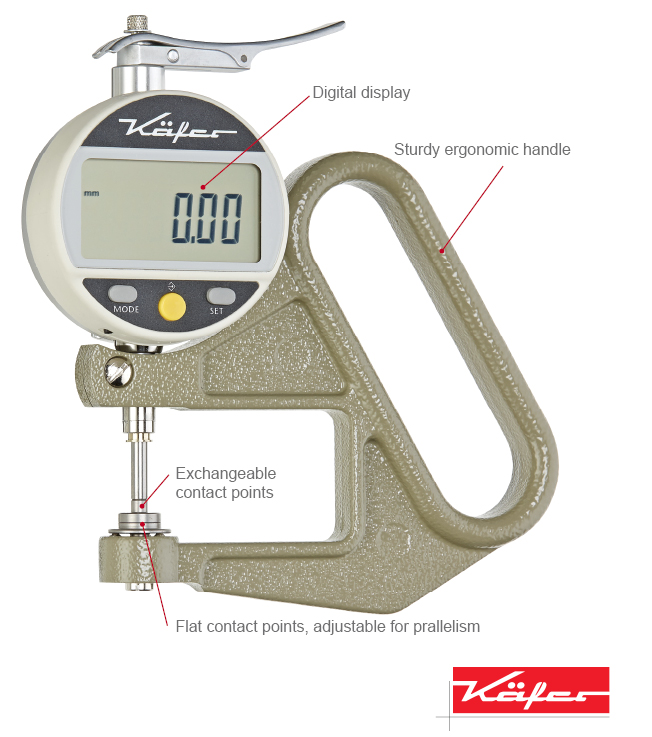

The large display has a good visual perception for easy reading of the measuring result. The use of aluminium for the body of the instruments makes them light and easy to handle.

The Digital Thickness Gauges are switchable from metric reading to inch reading.

Available contact points:

For full specification click here: Dial_Thickness_Gauges_Digital

Overview of the most important technical data

Type	Reading	Range	Bezel dia.
FD 100/25	0.001 mm	25 mm	100
FD 1000/30-3	0.001 mm	3 mm	30
FD 200	0.001 mm	12,5 mm	200
FD 200/25	0.001 mm	25 mm	200
FD 50	0.001 mm	12,5 mm	50
FD 50 R	0.001 mm	12,5 mm	50
FD 50/25	0.001 mm	25 mm	50
JD 100	0.01 mm	12,5 mm	100
JD 100 R	0.01 mm	12,5 mm	100
JD 100/25	0.01 mm	25 mm	100
JD 200	0.01 mm	12,5 mm	200
JD 200/25	0.01 mm	25 mm	200
JD 300	0.01 mm	12,5 mm	300
JD 300/25	0.01 mm	25 mm	300
JD 400	0.01 mm	12,5 mm	400
JD 400/25	0.01 mm	25 mm	400
JD 50	0.01 mm	12,5 mm	50
JD 50 R	0.01 mm	12,5 mm	50
JD 50 R	0.01 mm	12,5 mm	50
JD 50 TOP	0.01 mm	12,5 mm	50
JD 50 W	0.01 mm	12,5 mm	50
JD 50/25	0.01 mm	25 mm	50
JD 50/25 R	0.01 mm	25 mm	50
