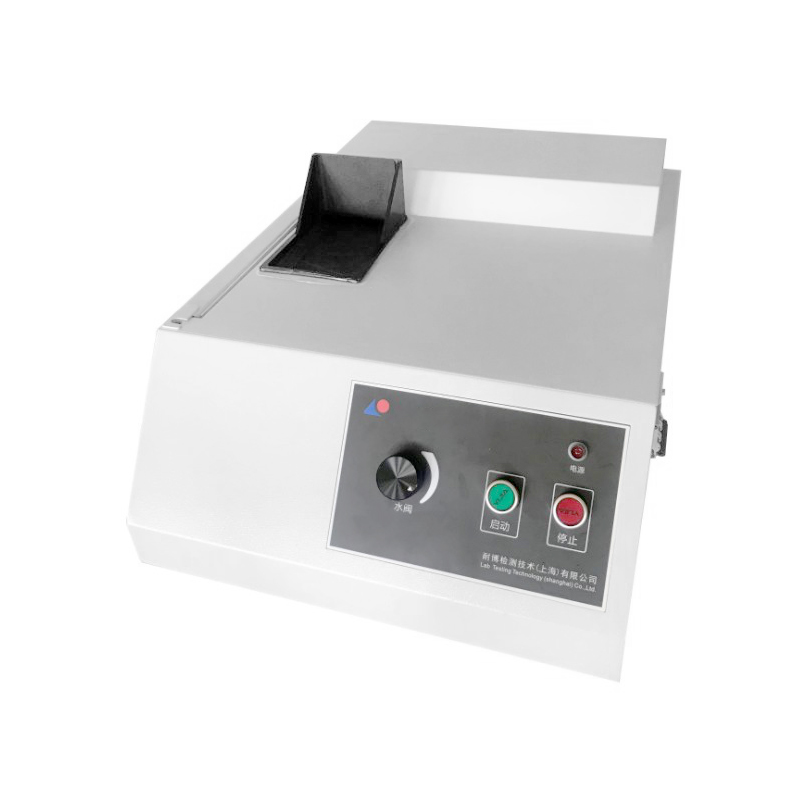

LSM-3000 Belt grinding prototype
Main features:
-Simple operation, weak current, safe and convenient.
-Fully enclosed shell, easy to clean, motor isolation, to prevent water and debris erosion.
-There is a cooling device, which can prevent dust from damaging human body and workpiece burns during use.
Stable operation, automatic deviation correction of sand belt, not easy to deviate.
Technical parameters:
|
Name |
Specifications |
| Roller Spacing | 310mm |
| Sand belt | Perimeter: 920mm width: 100mm standard configuration: 60# |
| Belt surface velocity | 790m/min |
| electric machinery | Power:550W speed:1400r/min |
| motor | 380V 50HZ |
| cooling system | City Water Cooling |
| Overall dimension | 690*520*355mm。 |
| weight | 49KG |
