LC-350 Metallographic Cutting Machine
-The machine adopts fully enclosed structure, sealing effect is good, safe and reliable;
-This machine adopts fast clamping device, clamping objects more quickly and accurately;
-Double air spring device, balance the weight of the upper cover shell, open and close the upper cover shell effortlessly;
-Special cooling water tank for circulating coolant;
-Jaws and work table and other main parts are made of stainless materials, long service life;
-Large cutting range and transmission power;
-Smooth rotation, low noise.
Technical Parameter
Item |
Specifications |
Maximum cut diameter | Φ 100 mm |
Cutting disc | 350 * 2.5 * 32 mm |
Spindle speed | 2800r/min |
Motor | 3KW 380V 50HZ |
Emergency brake | Emergency stop switch |

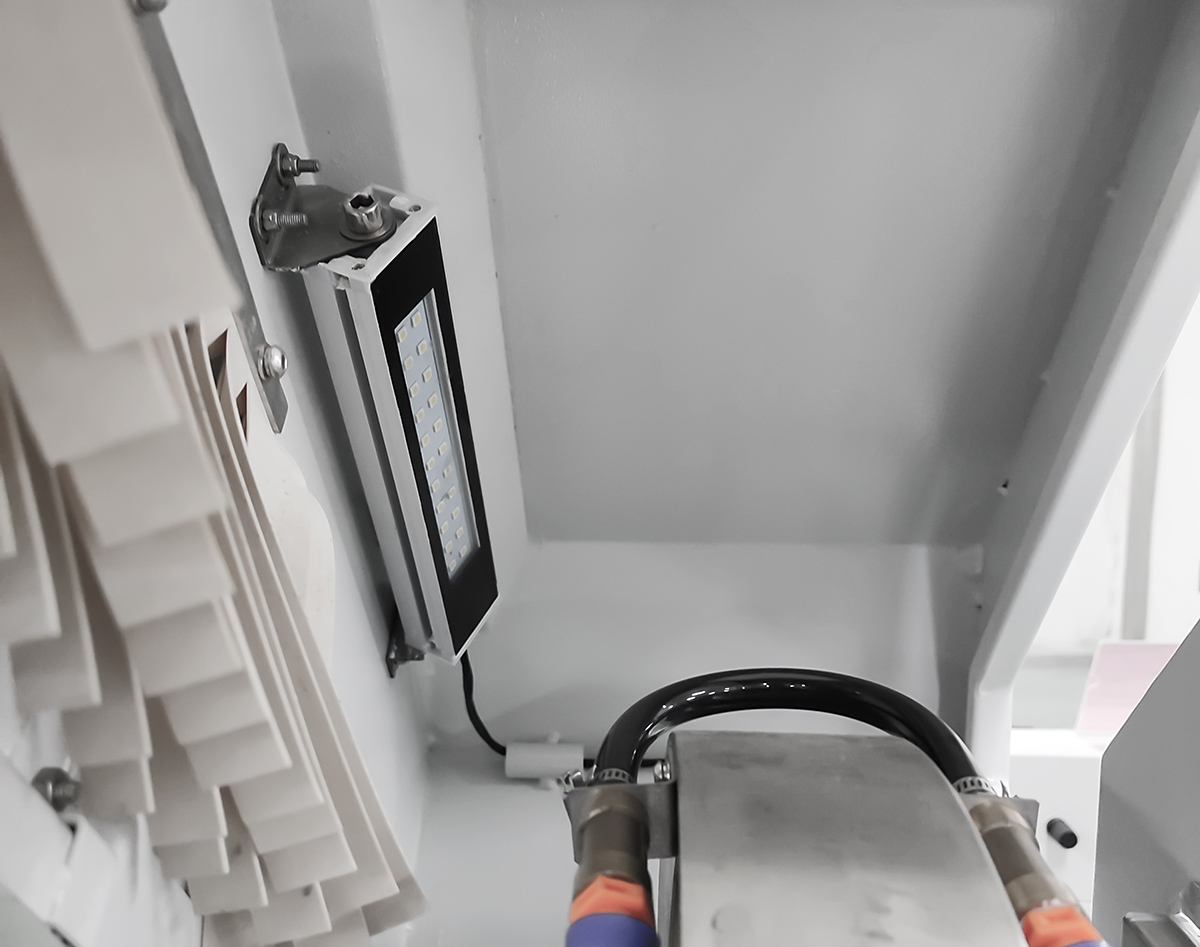

Cutting room lighting | Low voltage dc lighting |
Cutting platform size | 240*232mm |
Clamp device | Standard fast fixture |
Cooling device | External circulating filter water tank 40L, multiple sets of adjustable water spraying device and cleaning nozzle |
Cutting mode | Manually cut |
Observation window | Explosion-proof transparent engineering plastics |
Overall imension | 765*790*1400mm |
Weight | 230KG |
