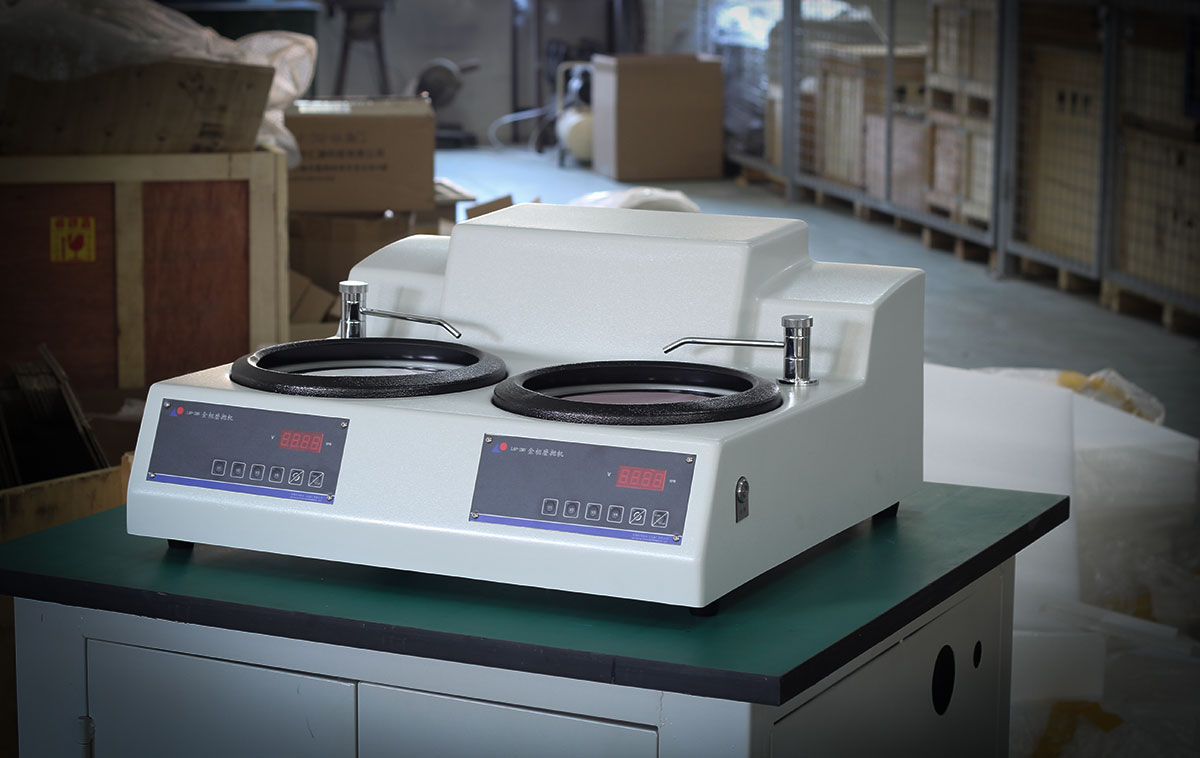

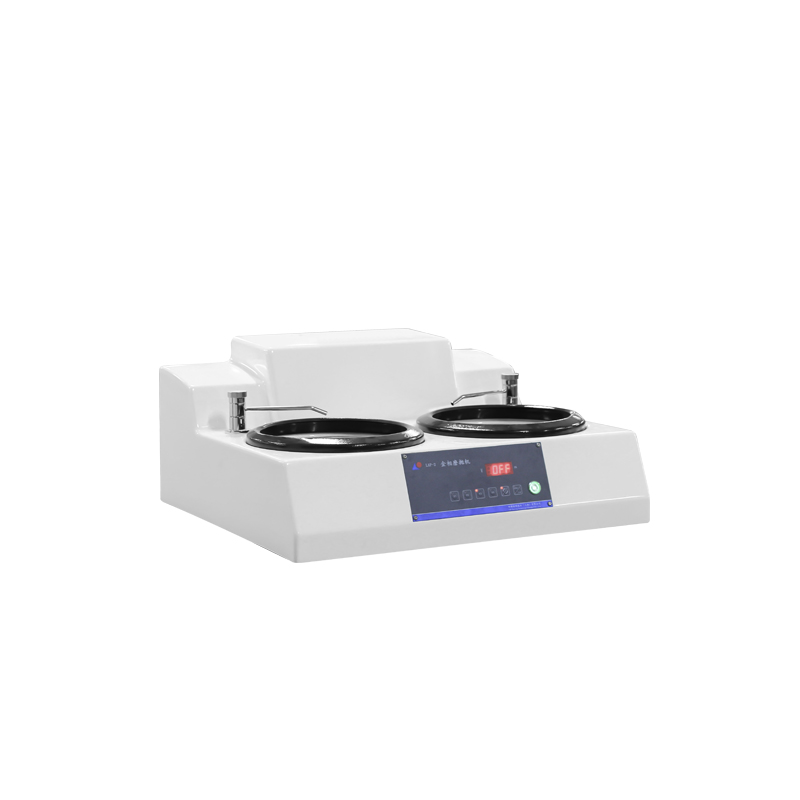

LAP-2MV dual disc dual control metallographic polishing machine
1. Two grinding discs, independent motor, independent control

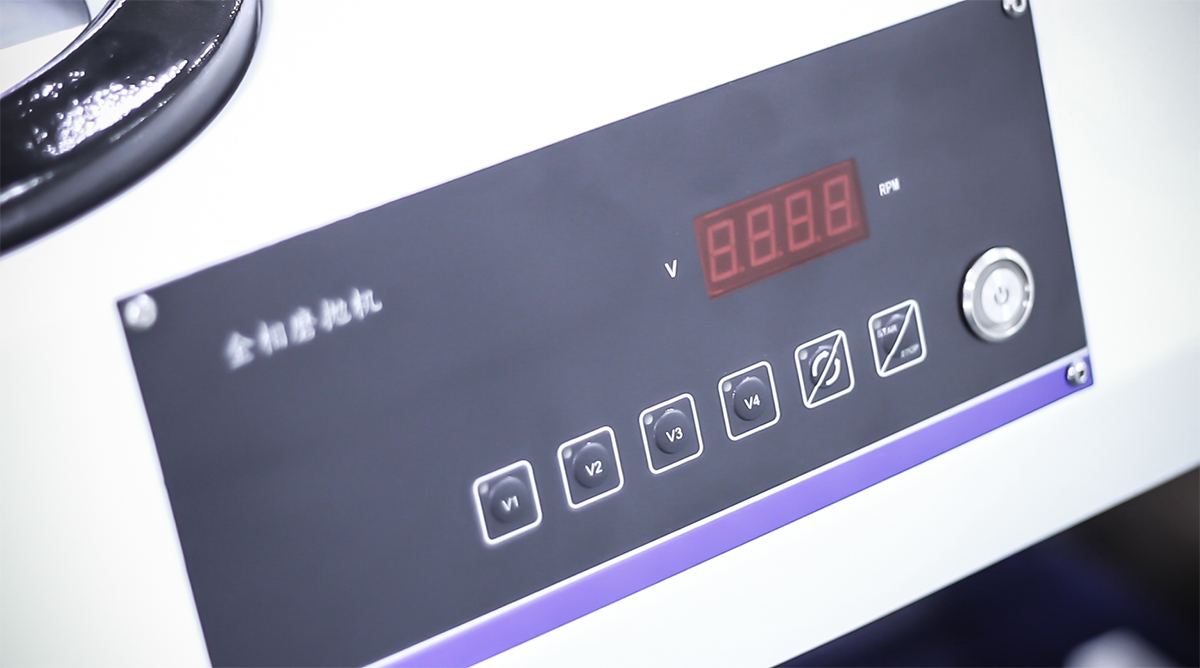

2. Eight gears of common speed. The speed of each gear can be set by the user to realize stepless speed regulation;
3. Anticlockwise/clockwise, one key switch, follow the habits of operators
4. The rotary water pipe can rotate to adjust the water flow
5. The equipment operates stably with low noise
Technical parameters:
|
name |
Specifications |
| Working disc diameter | Standard configuration φ 230mm (optional) φ 203mm） |
| Grinding disc speed (R / min) | Left panel: V1=150, V2=300, V3=600, V4=800 (self setting 100-1000r/min) Right panel: V1=300, V2=500, V3=800, V4=1000 (self setting 100-1000r/min) |
| Direction of rotation | / |
| Motor power | 0.75kw X2 |
| Power | Voltage: AC220V frequency: 50Hz |
| Overall dimension | 670×710×340mm |
| weight | 52kg |
