Precision Dial Gauges | digital

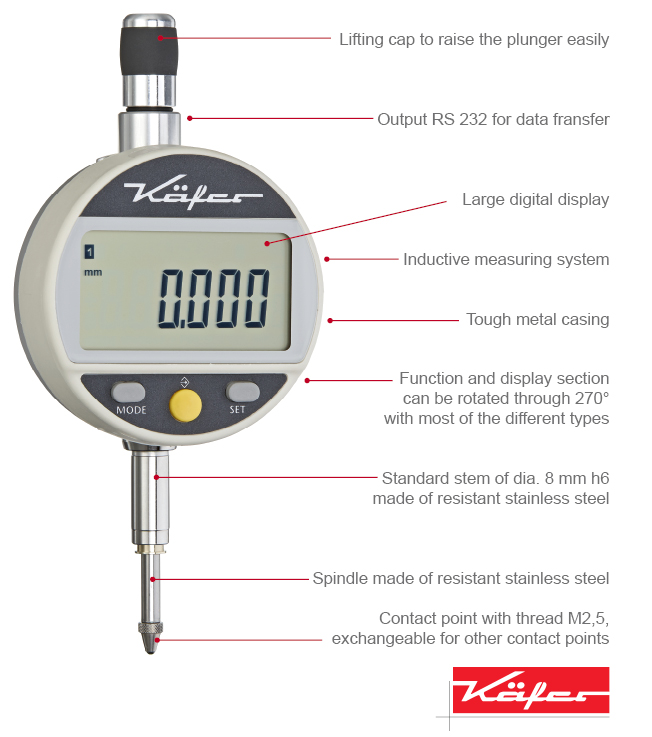

The digital display with its large numerals makes it very simple to use this Dial Gauge.
Function and display section can be rotated through 270°. The sturdy construction guarantees precision and reliability.

Following functions of the Digital Dial Gauges MD 12T and FMD 12T can be used:

Zero setting
mm/inch selection
Memory set hold
Data transmission
Réf I / Réf II
Preset value recall
Selection of measuring direction
Selection of Reading (only FMD 12T, FMD 25T)
Data request by any ASCII code

For full specification click here: Precision_Dial_Gauges_Digital

Overview of the most important technical data

Type	Reading	Range	Bezel dia.	Special Features
FKMD 12 T	0.001 mm	12,5 mm	44 mm
FKMD 5 R	0.001 mm	5 mm	44 mm	Back Plunger
FMD 100 TB	0.001 mm	100 mm	60 mm
FMD 12 TA	0.001 mm	12,5 mm	60 mm	MIN / MAX / DELTA
FMD 12 TB	0.001 mm	12,5 mm	60 mm
FMD 25 TA	0.001 mm	25 mm	60 mm	MIN / MAX / DELTA
FMD 25 TB	0.001 mm	25 mm	60 mm
FMD 50 TB	0.001 mm	50 mm	60 mm
KMD 12 T	0.01 mm	12,5 mm	44 mm
KMD 12 T wa	0.01 mm	12,5 mm	44 mm
KMD 5 R	0.01 mm	5 mm	44 mm	Back Plunger
MD 100 TB	0.01 mm	100 mm	60 mm
MD 12 TB	0.01 mm	12,5 mm	60 mm
MD 12 TOP	0.01 mm	12,5 mm	58 mm
MD 25 TB	0.01 mm	25 mm	60 mm
MD 50 TB	0.01 mm	50 mm	60 mm
