VICTORY Ⅱ – Hand-Held UV LED / White Light Lamp
The VICTORY Ⅱ is a portable, hand-held UV lamp designed for non-destructive testing applications such as fluorescent penetrant testing and magnetic particle inspections. It fully complies with NDT specifications, including ASTM E3022 and RRES 90061. Lightweight and rugged, it boasts an IP64 rating, ensuring dust-tight and water-resistant performance. With its state-of-the-art heat sink design, the VICTORYⅡ is mechanically cooled without the need for a fan.
| Type | UV Intensity at 15” (38cm) (μW/cm²) |
S/N | UV-A Coverage Area at 15 in (38cm) at minimum 1000 μW/cm² |
RRES 90061 | AITM6-1001 | ASTM E3022 |
|---|---|---|---|---|---|---|
| VIC-as1 (UV Only / Fanless) |
<5,000 | P7110-2 | 200 mm (Diameter) | v | v | v |
| VIC-as (UV + WH / Fanless) |
<5,000 | P7111-2 | 200 mm (Diameter) | v | v | v |
| VIC-sd (UV + WH / Fanless) |
≧8,000 | P7113-2 | 180 mm (Diameter) | v |

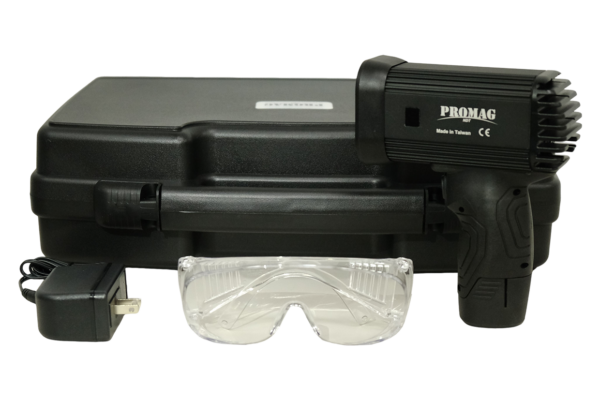

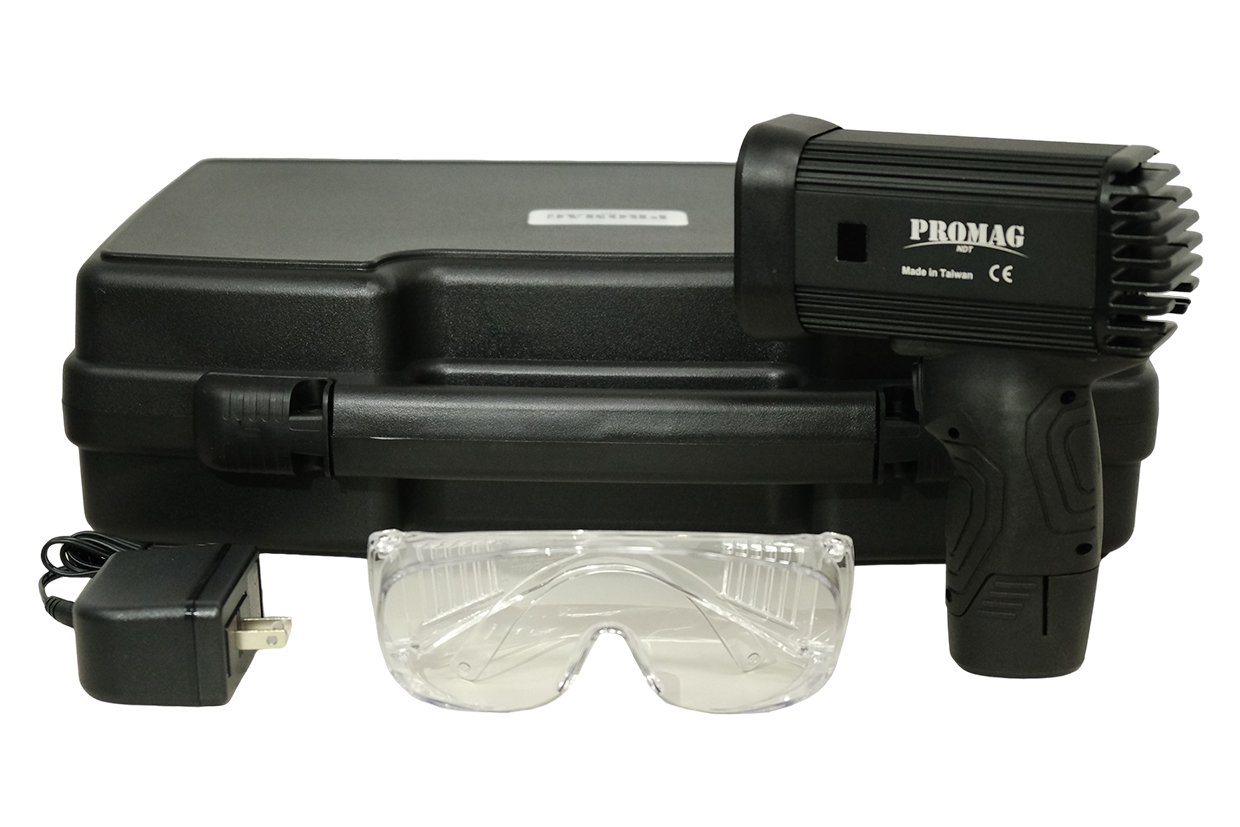

Included
- UV Lamp *1
- UV Goggles *1
- Power Supply Adapter *1
- 12V Battery *1
- Carry Case *1
Compliance
- RRES 90061
- ASTM E3022-18
- AITM6-1001
Features
- Dust-tight and water-resistant with an IP64 rating
- Achieve maximum mobility with extended battery power
- With 4 UV LEDs and 1 white light LED
- Runs optionally by mains adapter and rechargeable battery pack, 2 ways to inspect the defect
- Battery level displayWork properly in fluorescent penetrant and magnetic particle inspection
- Safe and pure UV-A content(less than < 20 Lux) with no UV-B and UV-C.
- Switch functions between UV and White light illumination
- Instant maximum output without pre-heating
- Available in two intensities to suit your specific needs.(for VIC-AS type)
- Spectrum range：365±5nm
UV-A Beam Profiles
VIC-sd & VIC-ad
