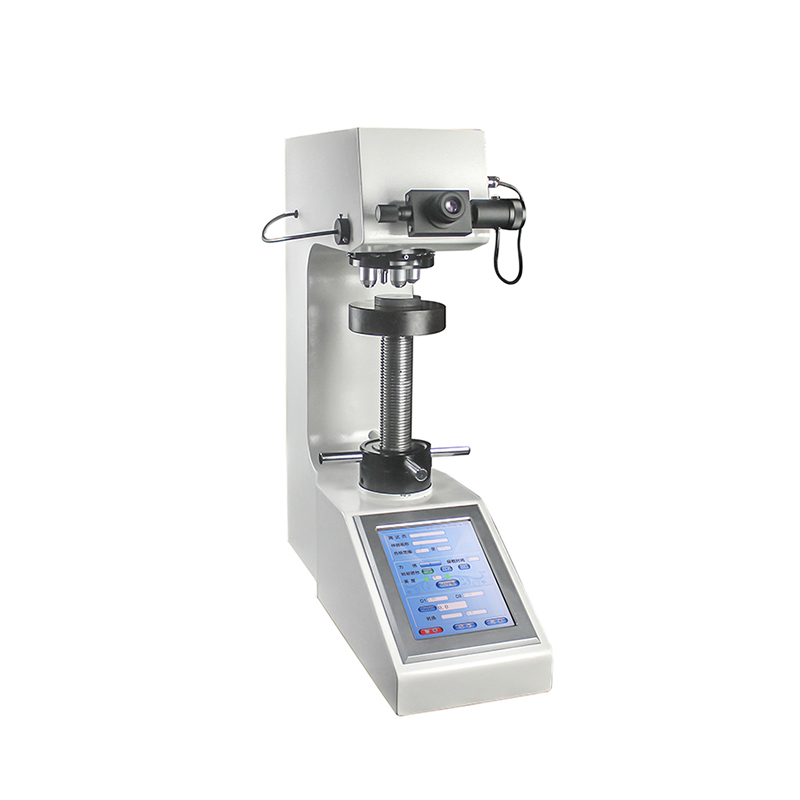

THV-5MDX Advanced Automatic Turret Digital Vickers Hardness Tester
THV–5MDX turret digital display touch screen Vickers hardness tester is a:
-7 gear test force, force value optional
-Automatic turret
-Automatic value display of hardness value

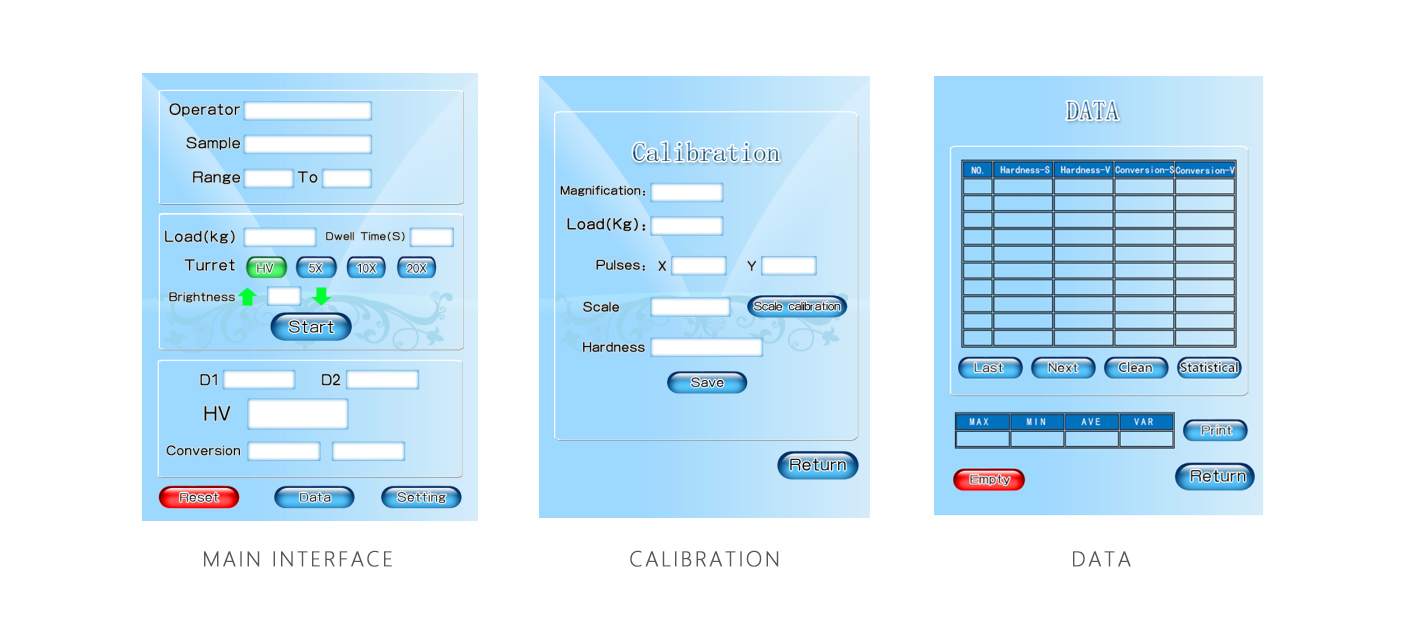

-8-inch touch screen interface, easy to operate
- 7 gear test force, meeting all test forces in this range in the standard
- 8-inch touch screen interface, easy for users to operate;
- Two different magnification objective lenses 10x and 20x (5x and 40x optional) are installed on the rotary tower at the same time, which can scan the sample contour in a wide range with low magnification as required.
- 10x, 20x (5x, 40x) two different magnification objective lenses can be measured, 40x (optional);
- During the test, the indenter and the objective lens automatically switch to each other, and the test point is automatically positioned accurately;
- It can be calibrated according to the standard hardness block or length scale, and the hardness can be corrected automatically according to the high, medium and low hardness values, so the hardness value is more accurate.
- Various hardness values are converted to each other;
- All test parameters and test results are stored in USB flash disk in Excel format for data processing and inspection report output;
- Test setting parameters are protected by password;
- The light source adopts LED lamp, which has long service life and does not need to replace the bulb;
- Built in camera, clearer image (option);
- Chinese, English and other languages to choose from;
- Equipped with RS-232 interface, it can be connected with computer (option)
Technical parameters:
| Model | THV-10MDX |
| Test force | 0.3Kgf (2.94N), 0.5Kgf (4.90N), 1.0 Kgf(9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), (0.2.Kgf optional) |
| Meet standard | GB/T4340, ASTM E92 |
| Measurement resolution | 0.01 μm |
| Data display output | LCD display readout, save to U disk in Excel format directly |
| Conversion scale | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
| Hardness test range | 8~2900HV |
| Test force application method | Automatic (loading, holding, unloading) |
| Test microscope magnification | 100X(test), 200X(test) |
| Test force dwell time | 1~99s |
| Maximum allowable specimen height | 180mm |
| Distance from indenter to wall | 160mm |
| size | 580*190*700mm |
| Weight | About 55 kg |
| Power supply | AC220V ± 5%, 50 to 60 hz |
Standard Accessory:
|
Item |
Quantity |
Item |
Quantity |
| DHV-1000-10X micrometer eyepiece |
1 |
Large, medium and V-shaped test bench |
Each one |
| Vickers hardness block |
2 |
Standby fuse (2A) |
2 |
| Power cable |
1 |
Dust bag |
1 |
| U disk |
1 |
Touch screen pen |
1 |
| Hexagon socket wrench (2.5mm) |
1 |
Adjust the foot level |
4 |
| Product qualification certificate, warranty card |
1 |
Instructions |
1 |
