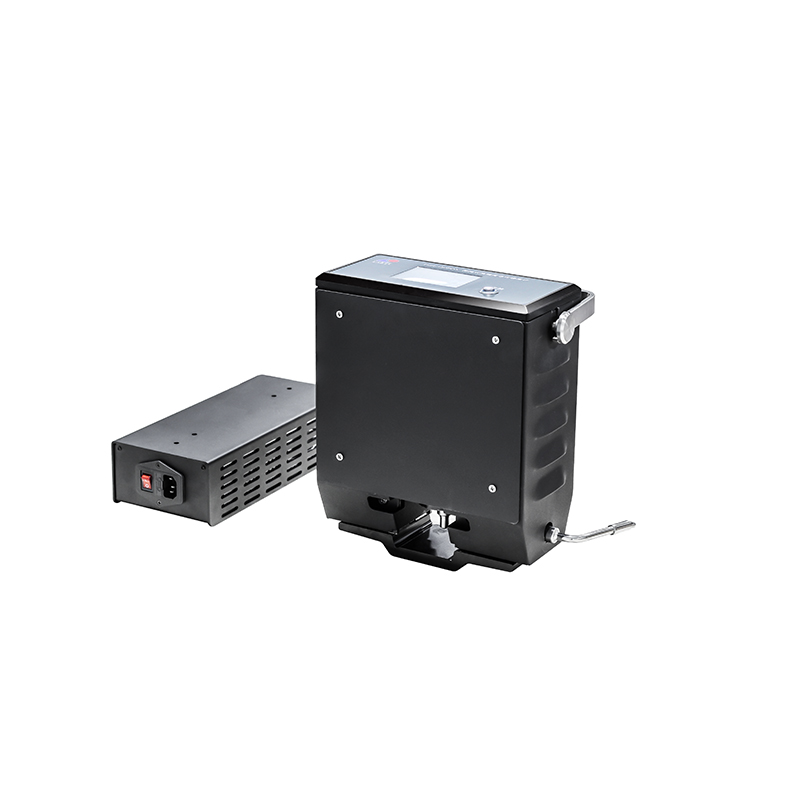

THR-150PDX Portable Rockwell Hardness Tester
1.Electric loading, high precision sensors, with a unique closed-loop control system.

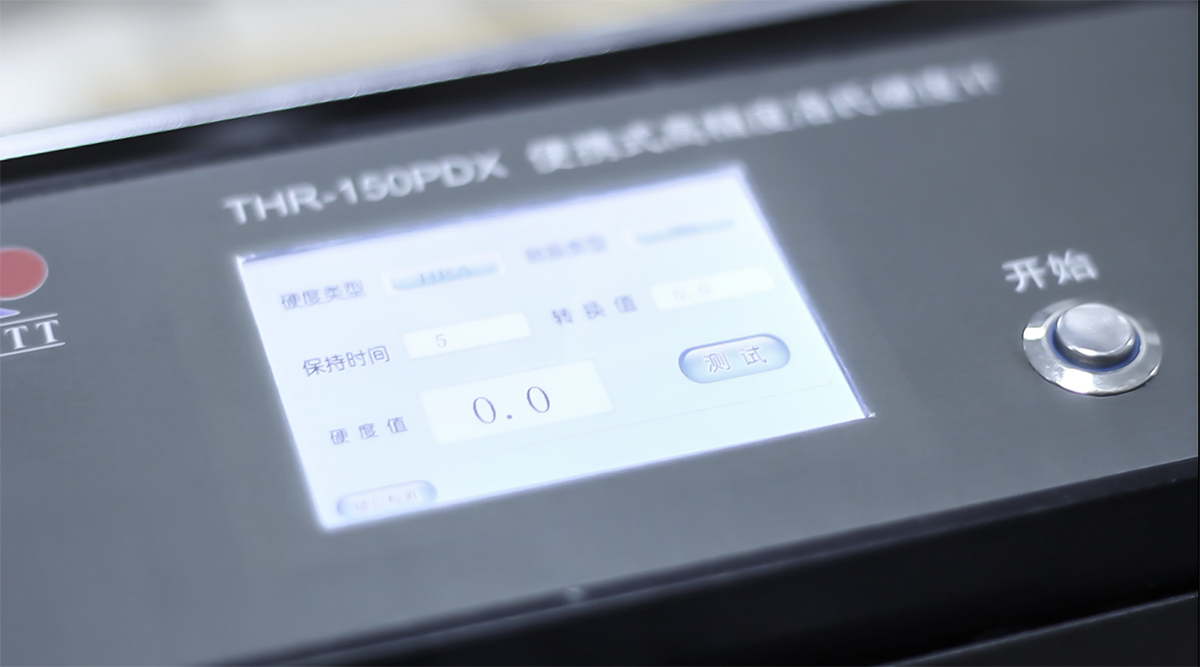

2.Touch screen interface, easy to operate, direct selection of hardness scale, force value automatically changed in the test parameters.
3.According to the standard hardness blocks, each hardness scale is divided into three sections: high, middle and low.
4.The test force can be automatically corrected by standard dynamometer.
5.Apply the initial test force and main test force automatically.
6.Powerful data processing functions, including: HR, HB, HV and other hardness system conversion, setting qualified range, automatic over-limit alarm, can input tester, sample name and other information.
7.More sample and test information, measurement data U disk saved in EXCEL format for easy editing and processing.
Technical Parameter
| Model | THR-150PDX |
| Initial test force | 10kgf(98.07N) |
| Total test force | 60kgf(588N) 100kgf(980N) 150kgf(1471N) |
| Rockwell hardness scale | HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRR、HRP、HRS、HRV |
| Measurement range | HRA:20-88、HRB:20-100 、HRC:20-70 、HRD:40-77 、HRE:70-100 、HRF:60-100 、HRG:30-94、HRH:80-100、HRK:40-100、HRL:100-120 HRM:85-115、 HRR:114-125 |
| Dwell time | 0-99s |
| Hardness resolution | 0.1HR |
|
Test force error |
＜0.5% |
| Data output | LCD display |
| Data storage | Data is saved in U disk as EXCEL format |
| Conversion scale | Rockwell, Brinell, Vickers |
| Carried standard | BSEN 6508， ISO 6508， ASTM E18， GB/T230 |
| Dimension of specimen | Flat：area≥160X100, thickness≥5mm |
| Dimension | 320×170×230mm |
| Weight | 10.5kg |
| Power supply | AC220+5%,50～60Hz |
