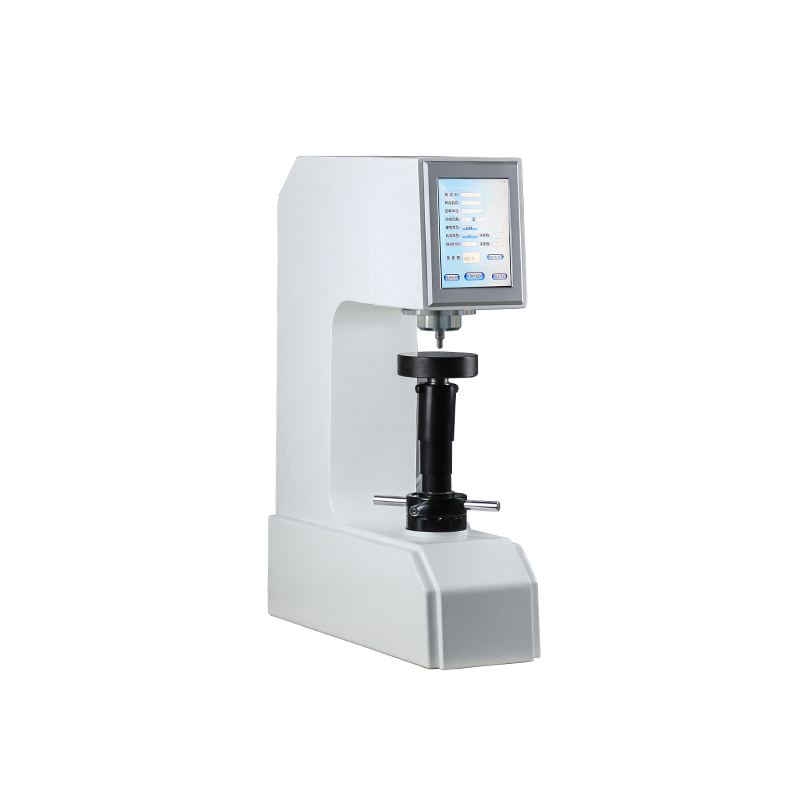

THR-150DX Rockwell Hardness Tester
1.Modern and beautiful appearance, stable structure
2.Touch screen interface, easy operation, multi-language versions
3.Available for using after staring up, unnecessary for installing weights and debugging
4.Electric loading, closed-loop control
5.All Rockwell scales, total 15 types
6.Automatically apply the initial load and main load
7.Automatic correction of high, medium and low hardness numbers
8.Automatic correction of load, with the force accuracy increased by a numerical level
9.More information of sample and testing
10.Data stored in USB flash disk, EXCEL format, easy for compiling and processing
11.Adopt the modular design, easy maintenance
12.Larger sample space, huge sample stage
Technical parameters:
|
Product model |
THR-150DX |
|
Scales Converted to |
Rockwell, Brinell, Vickers |
|
Dwell time |
0-99s |
|
Initial load of Rockwell |
10kgf (98N) |
|
Total load of Rockwell |
60kgf (588.4N) 100kgf (980.7N) 150kgf (1471N) |
|
Load value error |
＜0.5% |
|
Hardness testing range |
HRA: 20-96 HRB: 20-100 HRC: 20-70 HRD: 40-77 HRE: 70-100 HRF: 60-100 HRG: 30-94
HRH: 80-100 HRK: 40-100 HRL: 50-115 HRM: 50-115 HRR: 50-115 |
|
Hardness measurement accuracy |
0.5HR |
|
Executive standard |
GB/T230.1 GB/T230.2 national standard JJG112 verification regulation |
| Max Height of Sample | 200mm |
| Distance of Indenter to outer wall | 200mm |
|
Hardness reading |
LCD display |
|
Data output |
USB flash disk |
|
Power supply |
AC220V，50/60HZ |
| Net weight | About 70kg |
Standard Accessory:
|
Item |
Quantity |
Item |
Quantity |
| Diamond Rockwell indenter |
1 |
φ1.5875mm ball indenter |
1 |
| Test block（HRC high low 2pcs、HRB 1pc） |
3 |
Large, medium, V-shaped test table |
Each 1 |
| Fuse 2A |
2 |
Regulating screw |
4 |
| U Disk , touch pen |
Each 1 |
Anti-dust bag |
1 |
| Power cord |
1 |
Manual |
1 |
| Certificate, warranty card |
1 |
|
