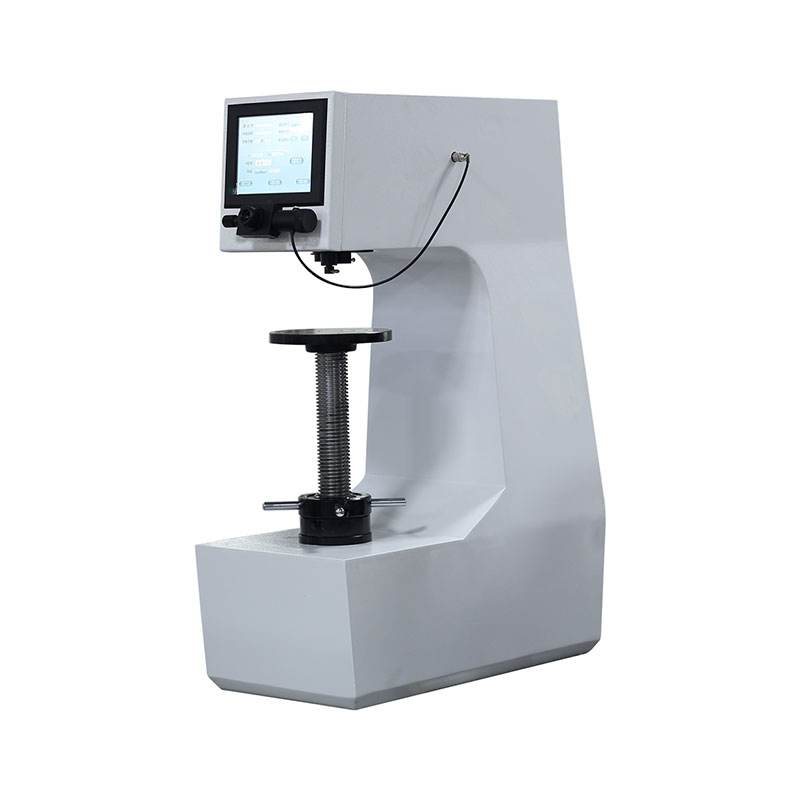

THB-3000XP Brinell Hardness Tester
1.Adopts electronic automatically add load, with high accuracy sensor, have special closed-loop control system , automatic compensation for each shift

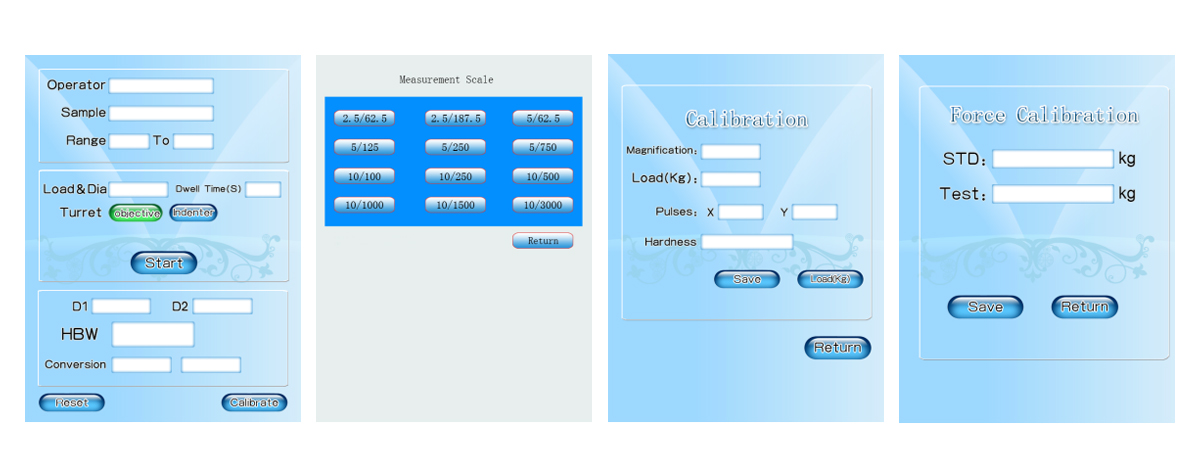

2.Visual structure with digital encoder, LCD display can show both value D1,D2 and hardness value
3.Hardness value error can be modified through according standard block or length scale
4.Test force can be automatic amended through standard dynamometer
5.Hardness value mutual conversion
6.All data can be saved in U disk as EXCEL format
Technical parameters:
| Model | THB-3000XP |
| Brinell Scale | HBW2.5/62.5、HBW2.5/187.5、HBW5/62.5、HBW5/125、HBW5/250、 HBW5/750、HBW10/100、HBW10/250、HBW10/500、HBW10/1000、 HBW10/1500、HBW10/3000 |
| Testing Force（Kgf） | 62.5kgf(612.9N)、100kgf(980.7N)、125kgf(1226N)、
187.5kgf(1839N)、250kgf(2452N)、500kgf(4903N)、750kgf(7355N) 1000kgf(9807N)、1500kgf(14710N)、3000kgf(29420N) |
| Carried standard | BSEN 6506, ISO 6506, ASTM E10, GB/T231 |
| Test force accuracy | 62.5～250kgf≤1% 500～3000kgf≤0.5% |
| Measuraing device resolution | 0.1um |
| Hardness resolution | 0.1HBW |
| Dwell time | 0～99S |
| Data output | LCD display |
| Data storage | Measurement values are saved in U disk as EXCEL format |
| Max Height of Specimen | 400mm |
| Distance of Indenter to outer wall | 250mm |
| Dimension | 660×330×1100mm |
| Weight | About 190kg |
| Power | AC220+5%,50～60Hz |
Standard Accessory:
|
Item |
Quantity |
Item |
Quantity |
| Eyepiece |
1 |
Large, Medium, “V” shaped Testing Table |
Each 1 |
| Diameter 2.5、5、10mm Hard Alloy Steel Ball Indenter |
Each 1 |
Standard blocks （HBW10/3000, HBW10/1000,HBW2.5/187.5） |
Total 3 |
| U disk、touch pen |
Each 1 |
Dust bag |
1 |
| Power cord |
1 |
Fuse 2A |
2 |
| Certificate, warranty card |
1 |
Manual |
1 |
| Regulating screw |
4 |
Wrench |
1 |
| level |
1 |
|
