The flexible, affordable all-rounder with zoom function for schools, training companies, inspection authorities and laboratories

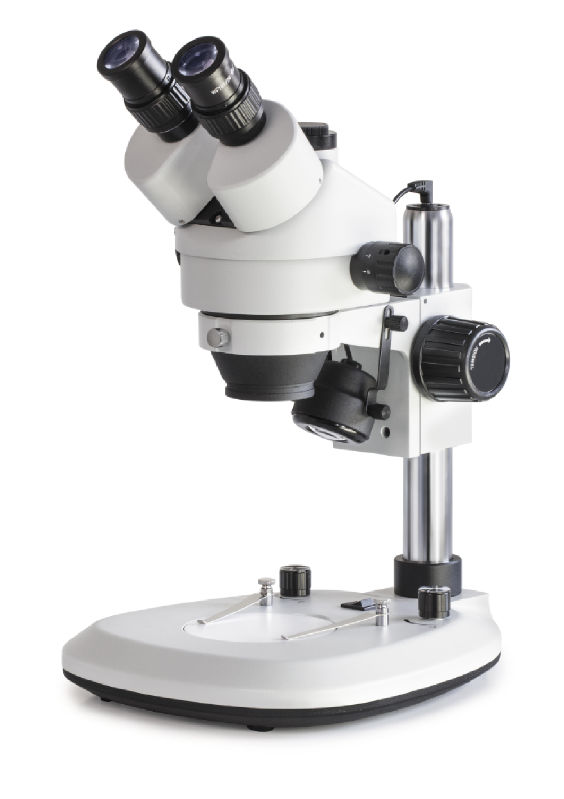

• The products in the KERN OZL-46 series are stereo zoom microscopes, which will impress you with their quality, easy handling, flexibility as well as their stability and economical price
• The LED incident and transmitted illumination included as standard guarantees the very best illumination of your sample

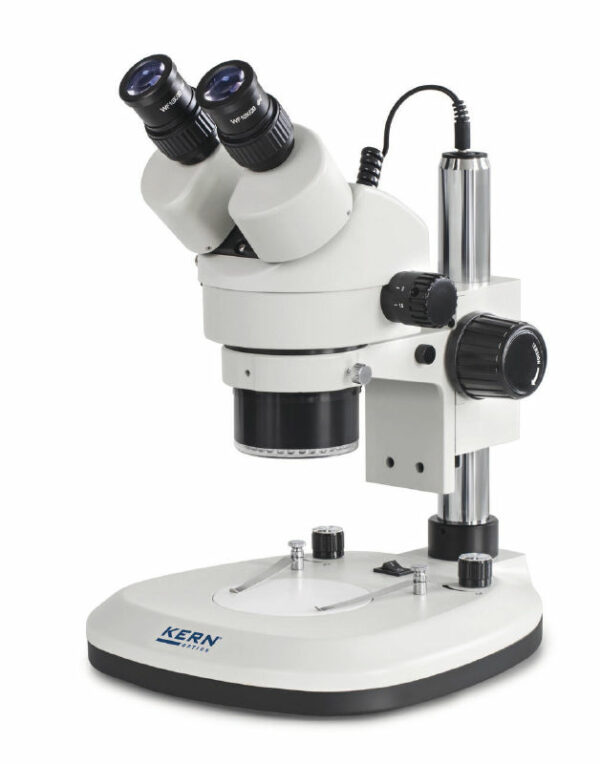

• The highlight of the KERN OZL 465/OZL 466is the strong, continuously dimmable, integrated LED ring illumination in the objective housing, which ensures uniform, shadow-free illumination. An LED transmitted light variant is also included
• As well as excellent optical characteristics and their large working surface, these models offer the highest level of comfort in this class – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry
• The zoom objective offers you continuous magnification from 7×–45×
• The KERN OZL-46 series is available as a binocular or trinocular version
• The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
• A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
• A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
• A C-mount adapter is required to connect a camera to the trinocular version
• Do you already know our product films? OZL-464, OZL-466, OZL-468

• Optical system: Greenough optics
• Brightness adjustable (separate)
• Lens barrel 45° tilt
• Magnification ratio: 6,4:1
• Light distribution 50:50
• Eye distance: 55.0 – 75.0 mm
• dioptre compensation both sides
• Overall dimensions W×D×H 300×240×420 mm
• Net weight approx. 4,085 kg
