The flexible and powerful polarising microscope for all professional applications with reflected and transmitted light

• These devices are professional, fully-equipped polarising microscopes, which use light polarisation to analyse minerals, crystals and isotropic materials
• The KERN OKO 185 is a combi variant of LED incident illumination and LED transmitted illumination. A height-adjustable 0.9/0.13 Swing-out Abbe condenser which can be centred for complete Köhler illumination are part of the standard version

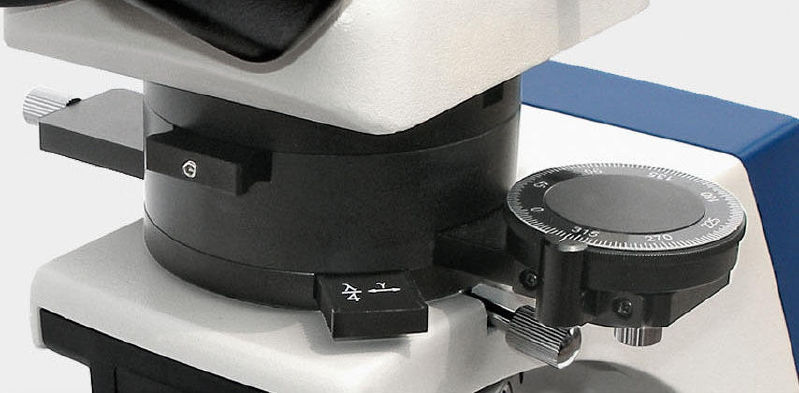

• A 360° revolving stage with 1° division, 6’ fine division and locking function is integrated into all ranges as standard
• A large selection of accessories such as, for example, a mechanical stage attachment as well as further objectives for long working distance and filter units are also available
• A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
• A C-mount adapter is required to connect a camera. You can select this adapter from the following model outfit list

• Mineralogy, texture observations, material testing, observation of crystals

• More complex samples with polarising properties

• Infinity optical system
• 5-fold lens revolving unit
• Siedentopf 30° inclined, 360° rotatable
• Dioptre compensation one-sided
• Overall dimensions W×D×H 500×200×500 mm
• Net weight approx. 13,528 kg

For information on the accessories which are supplied as standard, please see the individual brochures for the models, see document downloads „Detailed specification”
