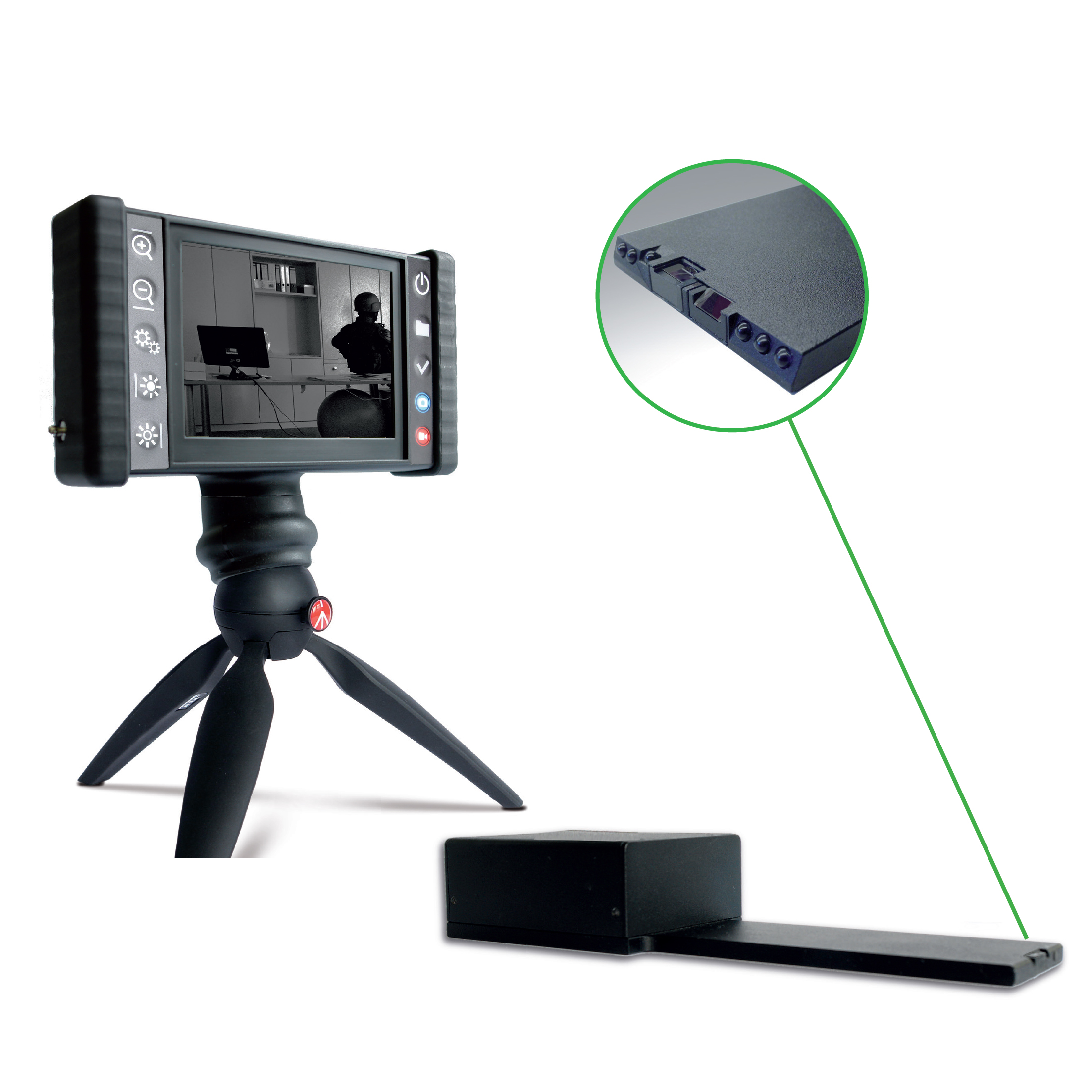

• IR Under Door Camera
• Chip on the tip technology
• High Power IR Illumination

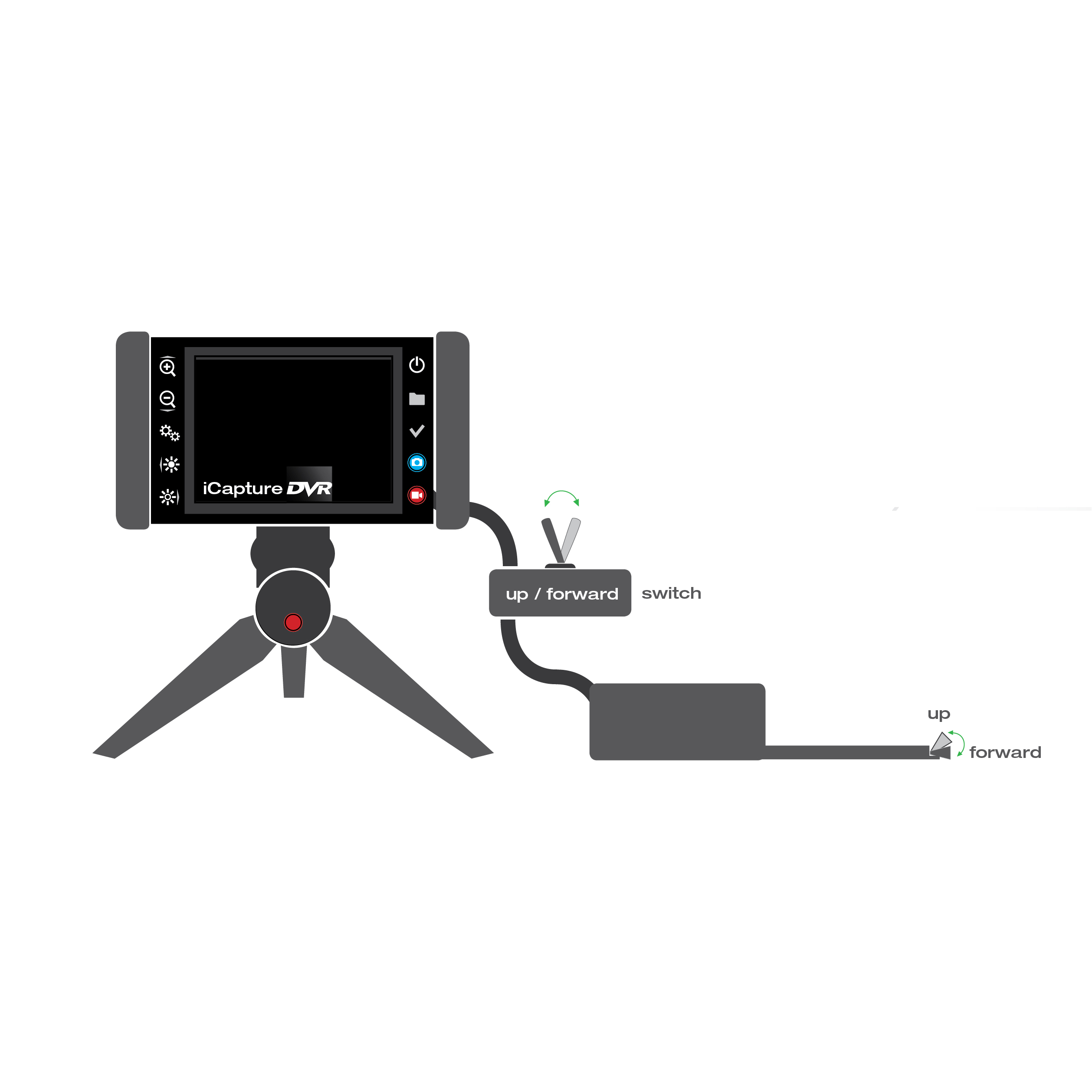

• Switchable DOV (forward/up)
• light sensitive B&W sensor
• 5“ high-resolution display
• Excellent image quality
• Bright and high-contrast display

Operating unit

Display size: 5.0“ (12.7cm) TFT colour

Display resolution: VGA (640×480 pixel)

Operating system: Real-time operating system, with on-screen menu

User interface: Direct action keys / function keys / arrow keys

Languages: English, German, Polish, French, Spanish, Italian, Turkish

Video interface: Composite video-out (BNC)

Power supply, primary: Rechargeable Li-ion battery (charger and battery are provided in delivery set)

Power supply, secondary: 12V adapter (optional accessory)

Documentation

Video format: MPEG4 (.avi) (with time and date stamp)

Image format: BMP (.bmp) (with time and date stamp)

Storage: SDHC memory card up to 32GB (FAT32) (8GB is provided in delivery set)

Camera control

Image sensor: ¼” Black & White Super-HAD CCD

Image typ: CCIR B/W (291.000 effective Pixel)

Senisitivity 0.005 Lux

Special function automatic frame integration

Image control

Zoom: x 3.5

Invert: Horizontal and vertical image inversion

Brightness: Adjustable

Contrast: Adjustable

Text annotation: Built-in text overlay generator

Illumination

Interchangeable LED IR

Wavelength 940nm

Power Dissipation 630 mW forward 420 mW up

Under Door Blade

Height: 6.0 mm

Length: 134 mm

Weight 390 g

Direction of view DOV 15° 90° 15°/90

Manufacturer‘s Data

Country of Origin Germany
