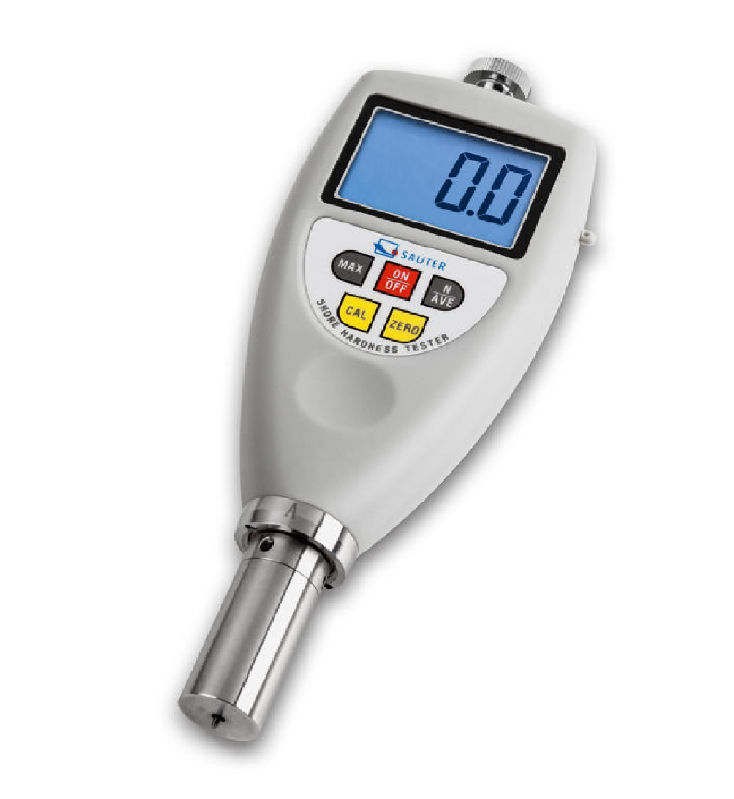

Professional Shore hardness tester

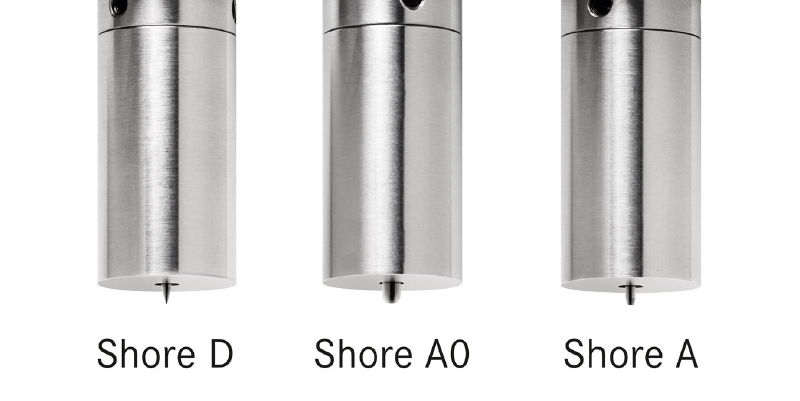

• Shore A, 0 and D to measure the hardness of plastics through penetration measurement
• Shore A rubber, elastomers, neoprene, silicone, vinyl, soft plastics, felt, leather and similar material
• Shore 0 foam, sponge
• Shore D plastics, formica, epoxides, plexiglass etc.
• Material thickness of the sample: min. 4 mmDelivered in a hard carrying case
• Particularly recommended for internal comparison measurement. Standard calibrations e. g. to DIN 7619-1 are often not possible because of very narrow standard tolerances
• Can be attached to the test stands TI-ACL (for Shore A and A0), TI-DL (for Shore D) to improve measuring uncertainty
• Large display with backlight
• Selectable: AUTO-OFF function or permanent operation, battery level indicator

hardness comparison plates see SAUTER AHBA-01 and SAUTER AHBD-01

Hardness type: Shore D

Measuring range (Max): 100 HD

Readout: 1,0 HD

Detailed specification: td-HDD_100-1_en
