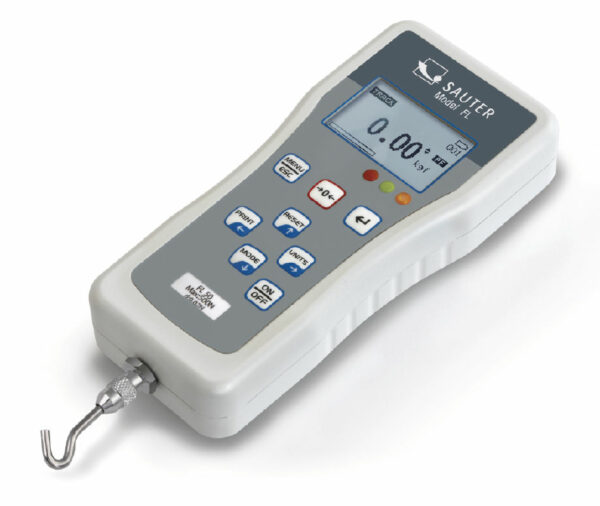

Premium force measuring instrument with graphic-assisted display and integrated measuring cell

• Turnable display with backlight
• Real time or Peak Hold Mode to observe transcients or capture peaks
• Metal housing for durable usage in harsh environmental conditions
• Can be mounted on all SAUTER test stands
• Capacity display: A bar lights up to show how much of the measuring range is still available
• Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed, in pull and push direction. The process is supported by a visual signal
• Internal memory for up to 500 measurements
• Continuous analogue output: Linear voltage signal in relation to the load (-2 – +2 V)
• 1. Standard attachments: as shown below
• Selectable measuring units: N, kN, kg, oz, lb

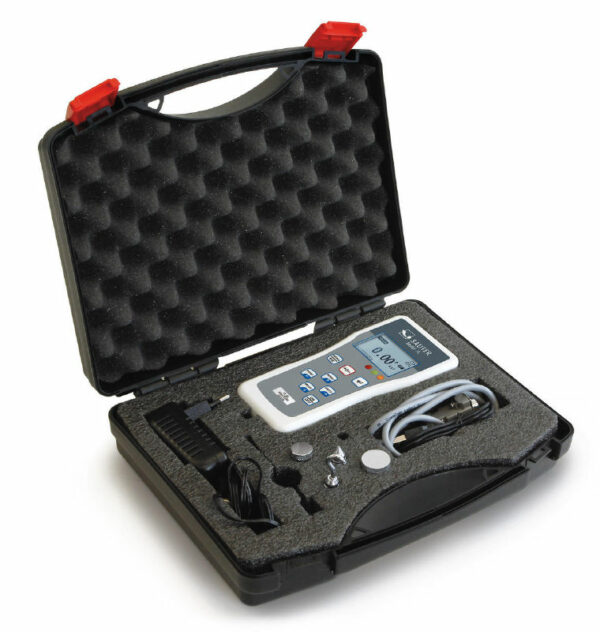

• 2.  Delivered in a hard carrying case
• Watch the product film for FL-S?

Measuring capacity (Max) N: 500

Readability (d) N:  0,2

Option Dakks Calibration Certificate: (Tension): ✓

Option Dakks Calibration Certificate: (Compression): ✓

Option Dakks Calibration Certificate: (Tension+ Co): ✓

Option Factory Calibration Certificate: (Tension): ✓

Option Factory Calibration Certificate: (Compression): ✓

Option Factory Calibration Certificate: (Tension+ Co): ✓

Detailed specification: td-FL_500_en
